AXI 4120/20 GOLD LINE V3

  • New
  • We recommend
AXI 4120/20 GOLD LINE V3

Technical specification

No. of cells 5-6s Li-Poly
Max. efficiency 89%
Max. efficiency current 13 - 37 A (>82%)
No load current 1,4 A
Current capacity 53 A/60 s
Internal Resistance 27 mohm
Dimensions (∅ x L) 49,8x54,4 mm
Shaft diameter 6 mm
Weight 315 g
Max. Power 1160 W
  • Product code
  • 412020V3
  • Availability
  • In stock 5 Pc
  • Price
  • 168.00 EUR

Product description

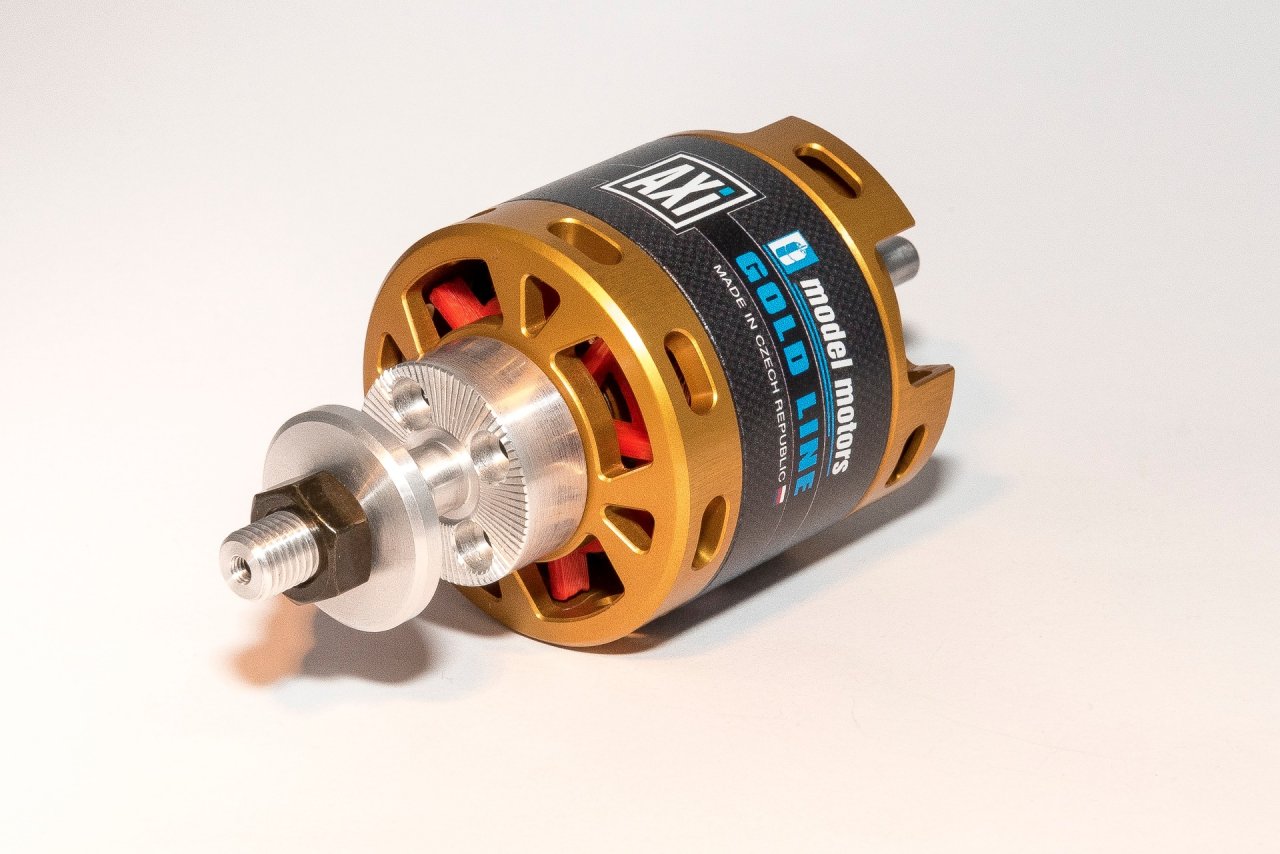

This brushless motor with neodymium magnets and a rotating case is manufactured using the latest technology from the finest quality materials. The hardened steel shaft supported by three ball bearings, and overall robust yet lightweight construction, ensure a long service life.

Delivered as standard radial mount set includes: mounting flange, propeller adaptor, securing collar, and screws. The unique design of this motor gives extremely high torque levels to turn large diameter and high pitch propellers with a high level of efficiency. New AXI 4120/20 GOLD LINE V3 has been developed especially for use with 5s and 6s lipols for 3D models up to 3500g and for sailplanes up to 5000g in weight.

Best Practices

4 000 141,1 5s 52A/60s 40A opto 15"x8"
3 300 116,4 5s 52A/60s 70A opto 15"x10"
3 200 112,9 5s 52A/60s 70A opto 16"x8"
3 500 123,5 6s 52A/60s 77A 15"x8"
5 000 176,4 5s 52A/60s 70A opto 17"x8"
7,5 - 9 ccm / .46-.54 -2stroke .65-.75 - 4stroke
