Technical specification

Max. Power 120A(2s)
Sustained current 80
Telemetry Duplex EX, Hott, MSB, S.Bus2, SRXL2
Operating Voltage 6 - 51
Operational temperature (°C) -10 ... 110
Batteries LiXX 2 - 12
Max. Current BEC (A) 30
Voltage BEC (V) 5.5 – 8.4
  • Product code
  • I85
  • Availability
  • In stock 1 Pc
  • Price
  • 191.00 EUR

Product description

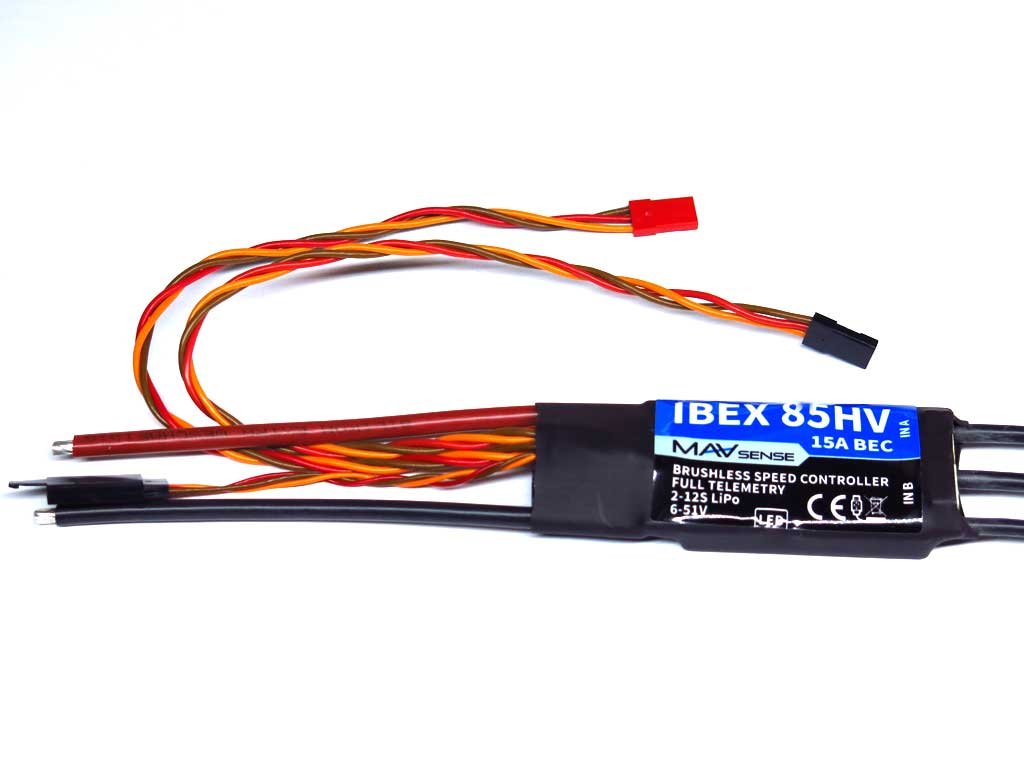

High-power controller of BLDC motors offers continuous current up to 80A at a voltage of up to 51V (12S LiPo). It offers a high-quality stabilized voltage output (BEC) with a continuous current of up to 15A and the possibility of connecting an external shutdown switch.

Additional functions

Option to activate the synchronous rectification (Active Freewheeling) for more accurate motor response and less heating of the controller during aerobatics.
Optional use of external on-off switch / push button / Hall-sensor / RC switch / Touch Switch.
Flawless operation with high power multi-pole motors and the vast majority of all other motor types.
Optional connection of backup battery without additional adapters.
Propeller positioning using a Hall sensor.
Optional external motor identification chip combined with a temperature sensor.
