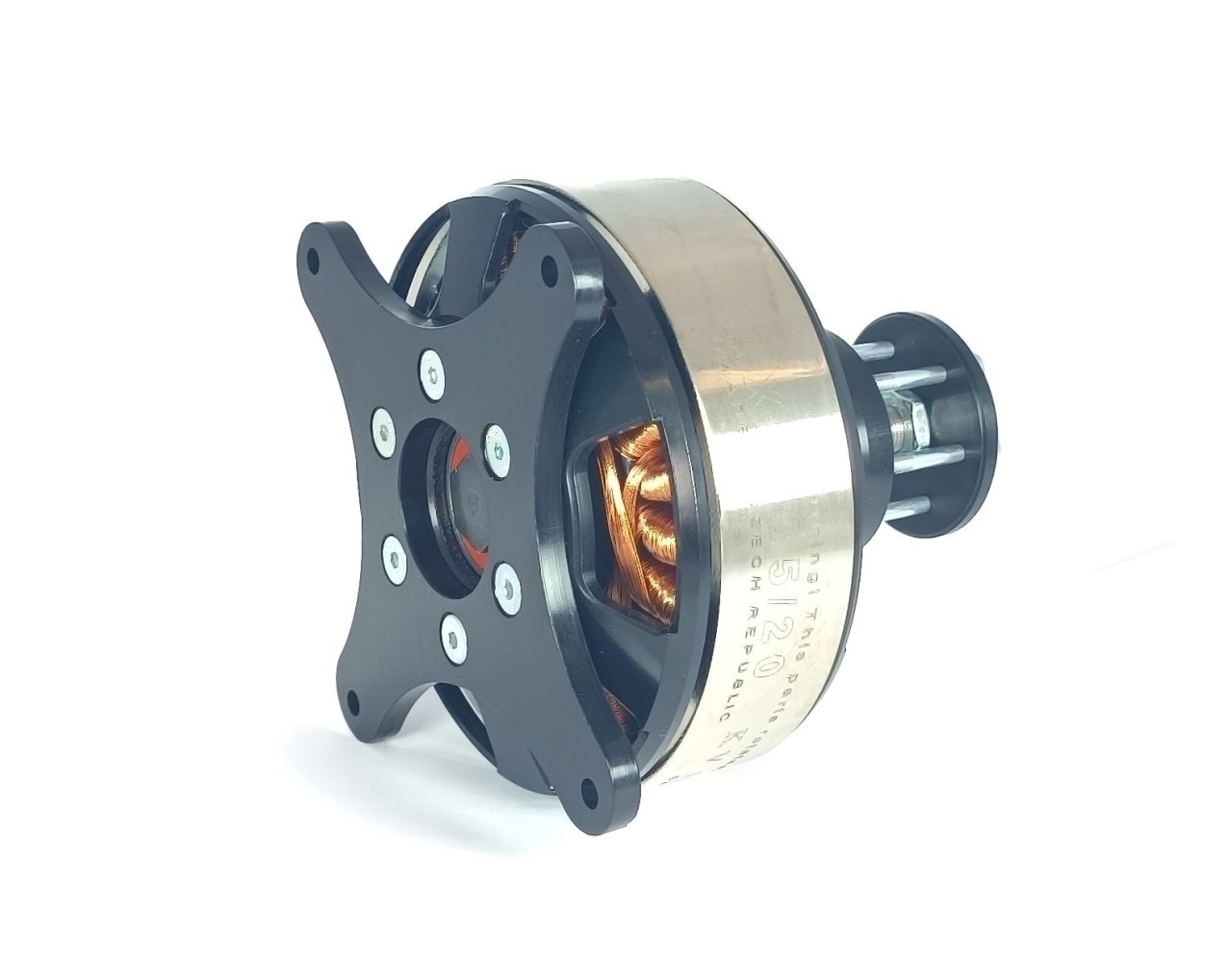

AXI 105.30 KV125

Technical specification

No. of cells max. 15s Li-Poly
RPM/V 125 RPM/V
Max. efficiency 95%
Max. efficiency current 100 - 160 A (>85%)
No load current 5.7 A
Current capacity 200 A/15 s
Internal Resistance 16,1 mOhm
Dimensions (∅ x L) 119x138 mm
Shaft diameter 10 mm
Weight 2400 g
Max. Power 9800 W
Telemetry Temperature Ibex
  • Product code
  • 10530 KV125
  • Availability
  • In stock 1 Pc
  • Price
  • 749.00 EUR
Pc

Product description

After many years of research and testing, AXi engineers have developed a brand new line brushless motors of AXI 105xx with 28 poles. The hardened steel shafts, built in prop adapters and pre-installed IBEX telemetry sensors represent the highest level of quality.



Best Practices

14 000 493,8 12s 120A/15sec 130A 32"x12"
18 000 634,9 14s 135A/15sec 130A 32"x10"
22 000 776,0 15s 160A/15sec 200A 32"x12"
10 000 352,7 12s 120A/15sec 130A 32"x12"
12 000 423,3 14s 135A/15sec 130A 32"x10"
16 000 564,4 15s 160A/15sec 200A 32"x12"
200cc
