| No. of cells | 4s Li-Poly |
| RPM/V | 690 RPM/V |
| Max. efficiency | 85% |
| Max. efficiency current | 12-26 A |
| No load current | 2,8 A |
| Current capacity | 69A/60s |
| Internal Resistance | 27 mohm |
| Dimensions (∅ x L) | 35x75,5 mm |
| Shaft diameter | 5 mm |
| Weight | 257 g |
| Max. Power | 1190 W |

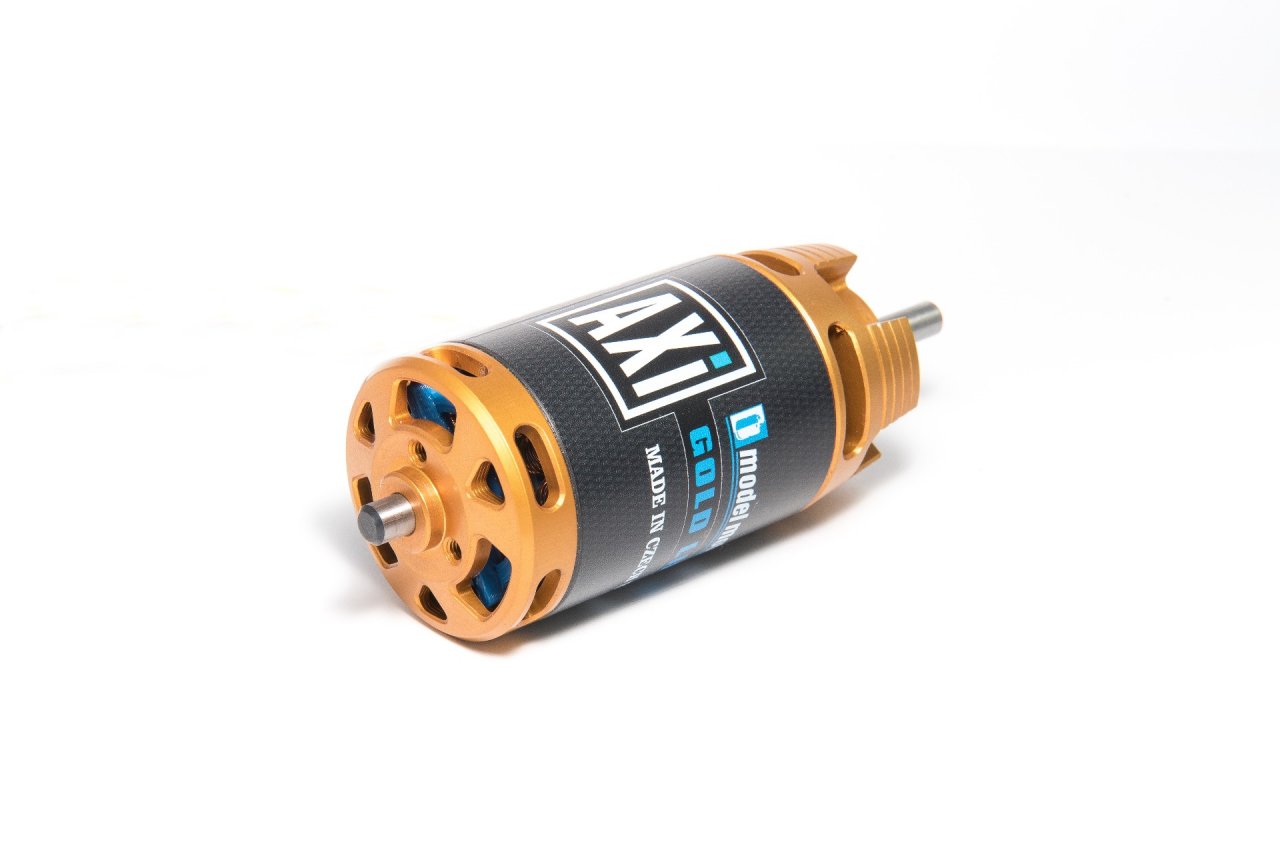

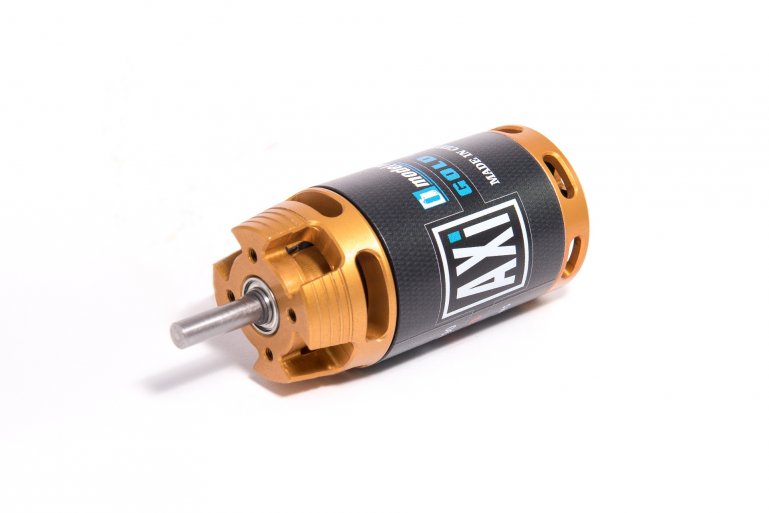

High torque brushless motor with rotating drum and high power neodym magnets suitable for Sailplane and Hotliners up to 3500g weight. The hardened steel 5mm diameter shaft and is supported by five ball bearings and overall robust but lightweight construction ensure very long lifetime.
These motors is not intended for radial mount.
 |
 |
 |
 |
 |
||
|---|---|---|---|---|---|---|
 |
3 000 | 105,8 | 4s | 65A/15s | 70A | 18" x 6" |
|
3 200 | 112,9 | 4s | 65A/15s | 70A | 16" x 8" |
|
3 500 | 123,5 | 4s | 65A/15s | 70A | 15"x 10" |
 |
3 000 | 105,8 | 4s | 65A/15s | 70A | 14"x 12" |
 |
3 000 | 105,8 | 4s | 65A/15s | 80A | 16" x 8" |
