| No. of cells | 3s Li-Poly |
| RPM/V | 840 RMP/V |
| Max. efficiency | 82% |
| Max. efficiency current | 8 - 14 A (>75%) |
| No load current | 0,4 A |
| Current capacity | 18 A/60 s |
| Internal Resistance | 185 mohm |
| Dimensions (∅ x L) | 27,7x35 mm |
| Shaft diameter | 3,17 mm |
| Weight | 69,5 g |

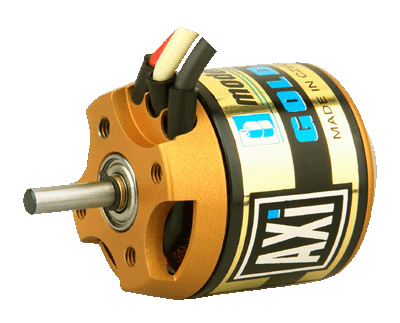

The high quality and performance of AXI 22xx GOLD LINE motors meant that they were a perfect base for development of the new AXI 2217/xx GOLD LINE. New small and powerfull motor AXI 2217/20 GOLD LINE with rotating case is suitable for trainers up to 900g, 3D models up to 650g and for sailplanes up to 1100g. Hardened steel Shaft have 3,17mm diameter and is supported by two large ball bearings wich ensure very good mechanical stability.

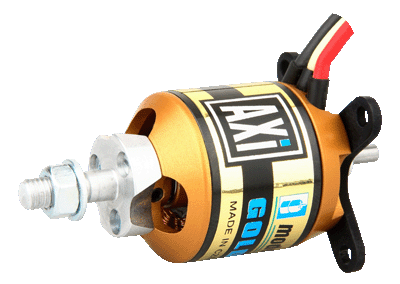

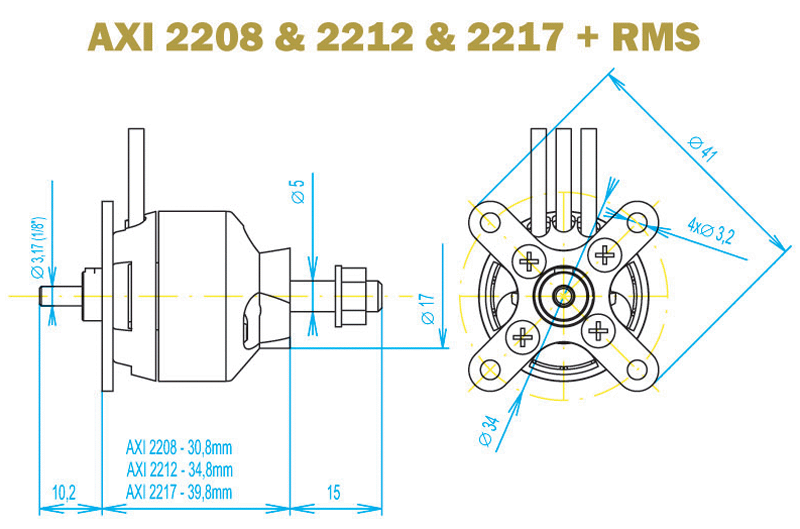

Thanks to using newest materials this motors achieve in their weight category extremely high efficiency and high load possibility. The optional Radial Mount Sets can be use also with AXI 2217/xx series motors.
 |
 |
 |
 |
 |
||
|---|---|---|---|---|---|---|
 |
900 | 31,7 | 3s | 18A/60s | 18A | 11"x5,5" |
 |
650 | 22,9 | 3s | 18A/60s | 18A | 12"x5" |
 |
1 100 | 38,8 | 3s | 18A/60s | 18A | 12"x6" |
