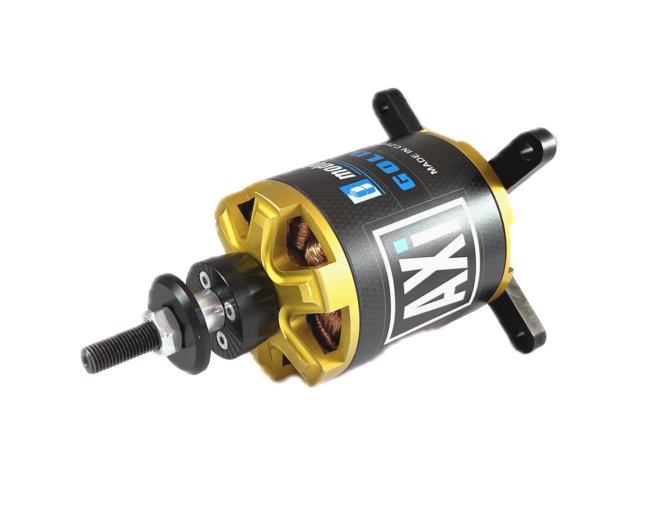

AXI 5345/14 HD 3D Extreme V3 KV225

  • New
  • We recommend
AXI 5345/14 HD 3D Extreme V3 KV225

Technical specification

No. of cells 8 - 10 Li-Poly
RPM/V 225 RMP/V
Max. efficiency 94%
Max. efficiency current 36 - 84 A (>85%)
No load current 2,5 A
Current capacity 112 A/60 s
Internal Resistance 27 mohm
Dimensions (∅ x L) 63x84,3 mm
Shaft diameter 8 mm
Weight 995 g
Max. Power 4200 W
Telemetry RPM / Temperature
  • Product code
  • 534514HD3DV3
  • Availability
  • In stock 3 Pc
  • Price
  • 413.00 EUR
Pc

Product description

New more powerfull and improved motors AXI 5345/xx HD V3 are suitable for 3D models up to 8000g, aerobatic models up to 12000g and large realistic flying models up to 15000g in weight.  Motor is more robust for unlimited 3D and has new 10mm shaft with standard 8mm shaft ending. Three larger ball bearings allow unlimided load at 3D flying.

AXI53xx V3 motors offer front and reverse (radial) mounting options, and two prop adapters for both mounting options are included as standard.

Best Practices

11 000 388,0 10s 100A/20s 90A 20"x13"
7 500 264,6 10s 100A/20s 90A 22"x10"
8 500 299,8 10s 100A/20s 90A 21"x14"
60 - 80 ccm / 4.0-4.9 gasoline
