|No. of cells||10s Li-Poly|
|Max. efficiency current||20 - 59 A (>85%)|
|No load current||1,8 A|
|Current capacity||75 A/20 s|
|Internal Resistance||34 mohm|

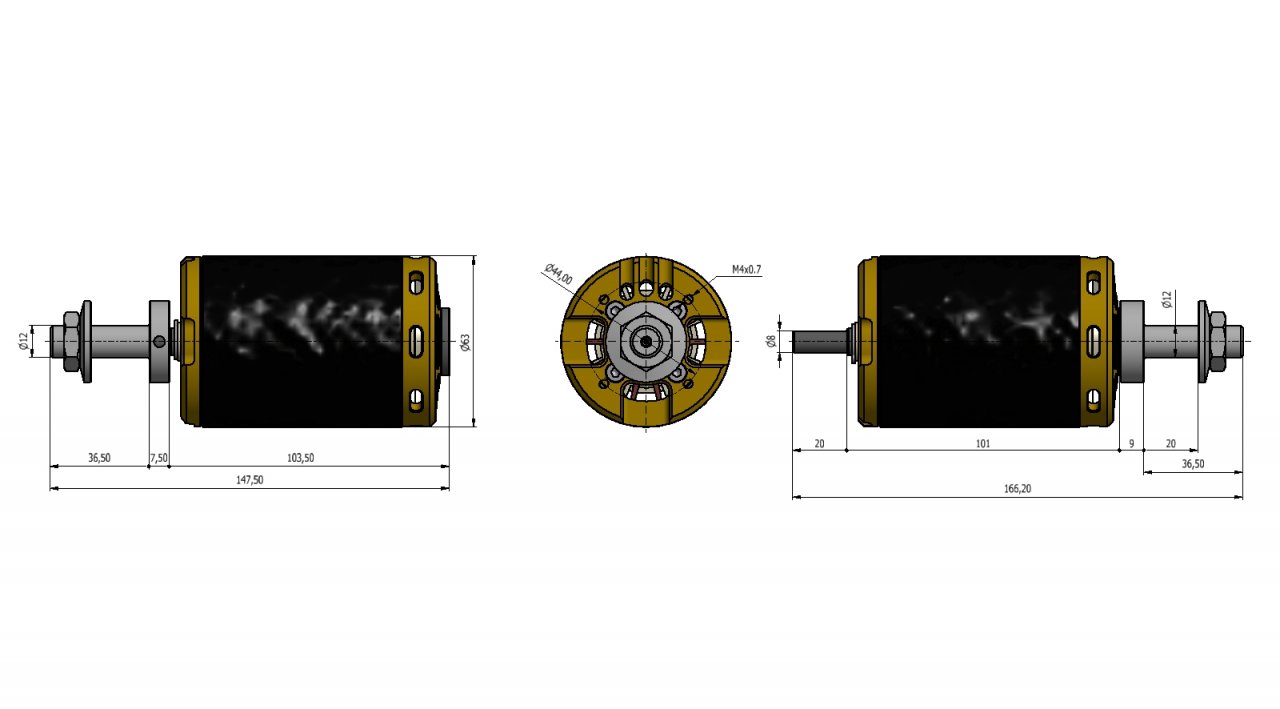

|Dimensions (∅ x L)||63x104 mm|
|Shaft diameter||8 mm|
This low RPM but enormously high torgue motor was custom designed for realistic flying with scale planes up to 15000g in weight. Because of its great success it was released to production.
AXI 5360xx V2 GOLD LINE with unique design has three ball bearings on the shaft and additional supporting ball bearing on rotating case. This motor reach extemely high efficiency throught all operation range which is necessary for these models.
