AXI 5345/20 HD GOLD LINE V2

  • New
AXI 5345/20 HD GOLD LINE V2

Technical specification

No. of cells 10 - 12 Li-Poly
RPM/V 145 RMP/V
Max. efficiency 95%
Max. efficiency current 25 - 63 A (>85%)
No load current 1,5 A
Current capacity 85A/60 s
Internal Resistance 42 mohm
Dimensions (∅ x L) 63x84,3 mm
Shaft diameter 8 mm
Weight 995 g
Max. Power 3870 W
  • Product code
  • AXI534520
  • Availability
  • In stock more than 5 Pc
  • Price
  • 278.00 EUR
  • Price (excl. VAT)
  • 229.25 EUR
Pc

Product description

New more powerfull and improved motors AXI 5345/xx HD V2 are suitable for 3D models up to 8000g, aerobatic models up to 12000g and large realistic flying models up to 15000g in weight.  Motor is more robust for unlimited 3D and has new 10mm shaft with standard 8mm shaft ending. Three larger ball bearings allow unlimided load at 3D flying.

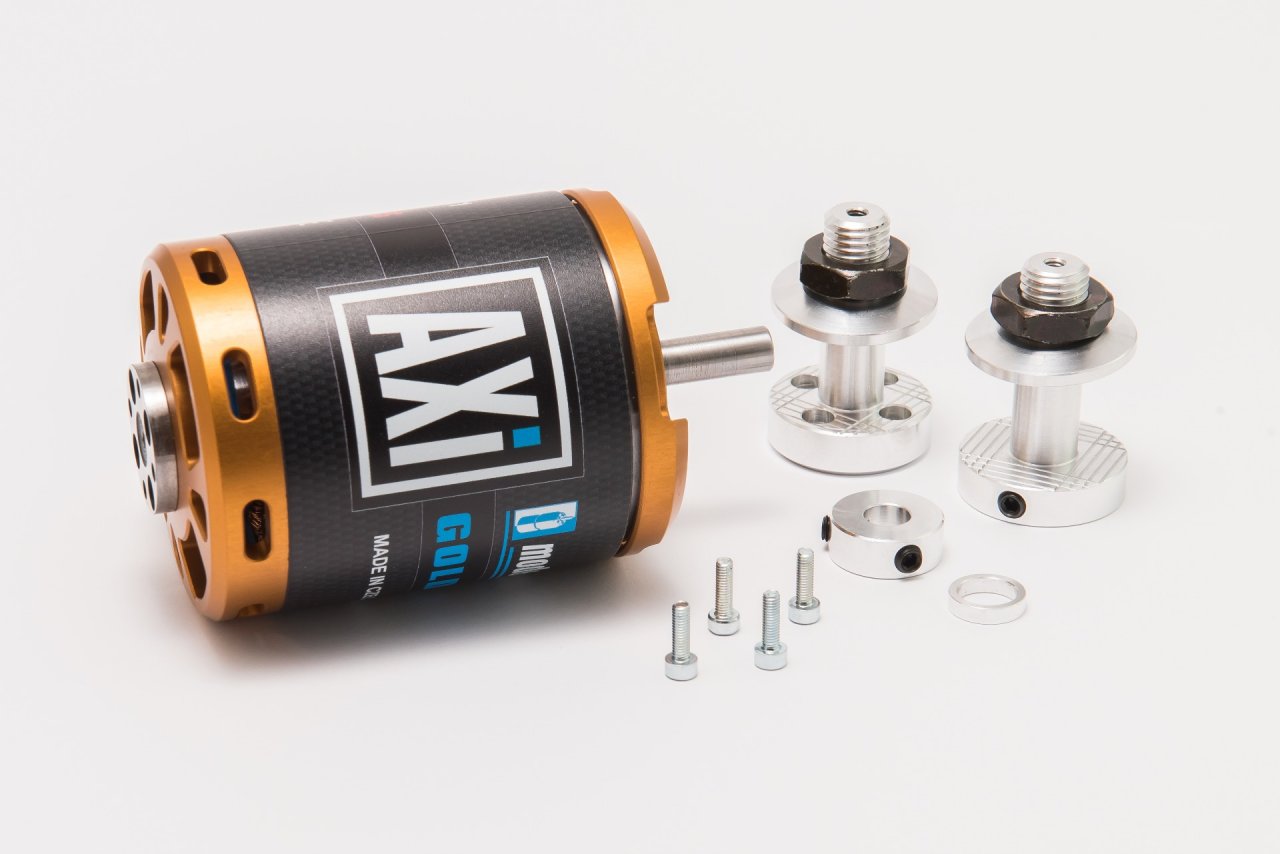

AXI53xx V2 motors offer front and reverse (radial) mounting options, and two prop adapters for both mounting options are included as standard.

Best Practices

13 000 458,6 12s 80A/30s 99A up to 24"x10"
10 000 352,7 10s 80A/30s 99A 22"x12"
8 500 299,8 12s 85A/30s 125A 24"x10"
10 000 352,7 12s 80A/30s 99A up to 22"x12"
1 000 35,3 10s 80A/30s 99A 24"x12"
60 - 75 ccm / 3.6-4.6 gasoline
