AXI 2820/12 GOLD LINE V2

AXI 2820/12 GOLD LINE V2

Technical specification

No. of cells 3 - 5 Li-Poly
RPM/V 990 RPM/V
Max. efficiency 85%
Max. efficiency current 15 - 25 A (>76%)
No load current 1,7 A
Current capacity 38 A/60 s
Internal Resistance 59 mohm
Dimensions (∅ x L) 35x46 mm
Shaft diameter 5 mm
Weight 148 g
Max. Power 650 W
  • Product code
  • 282012V2
  • Availability
  • In stock more than 5 Pc
  • Price
  • 82.00 EUR
  • Price (excl. VAT)
  • 67.31 EUR
Pc

Product description

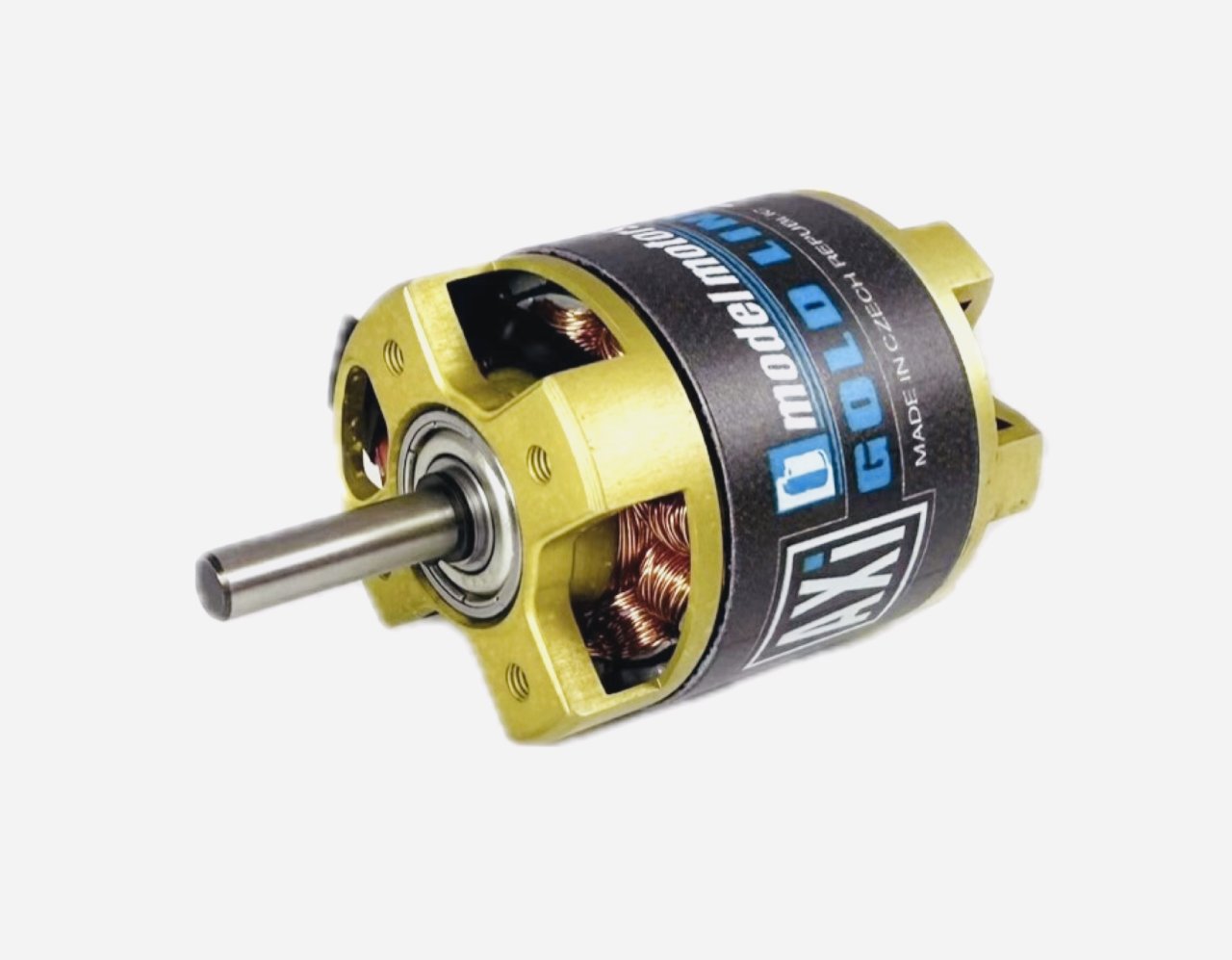

High torque brushless motor with rotating drum and high power neodym magnets suitable for models of 600 - 700 size, and up to 3000 g in weight. Due to it’s high torque this motor is capable of turning large propellers with a high level of efficiency and without the need for a gearbox.

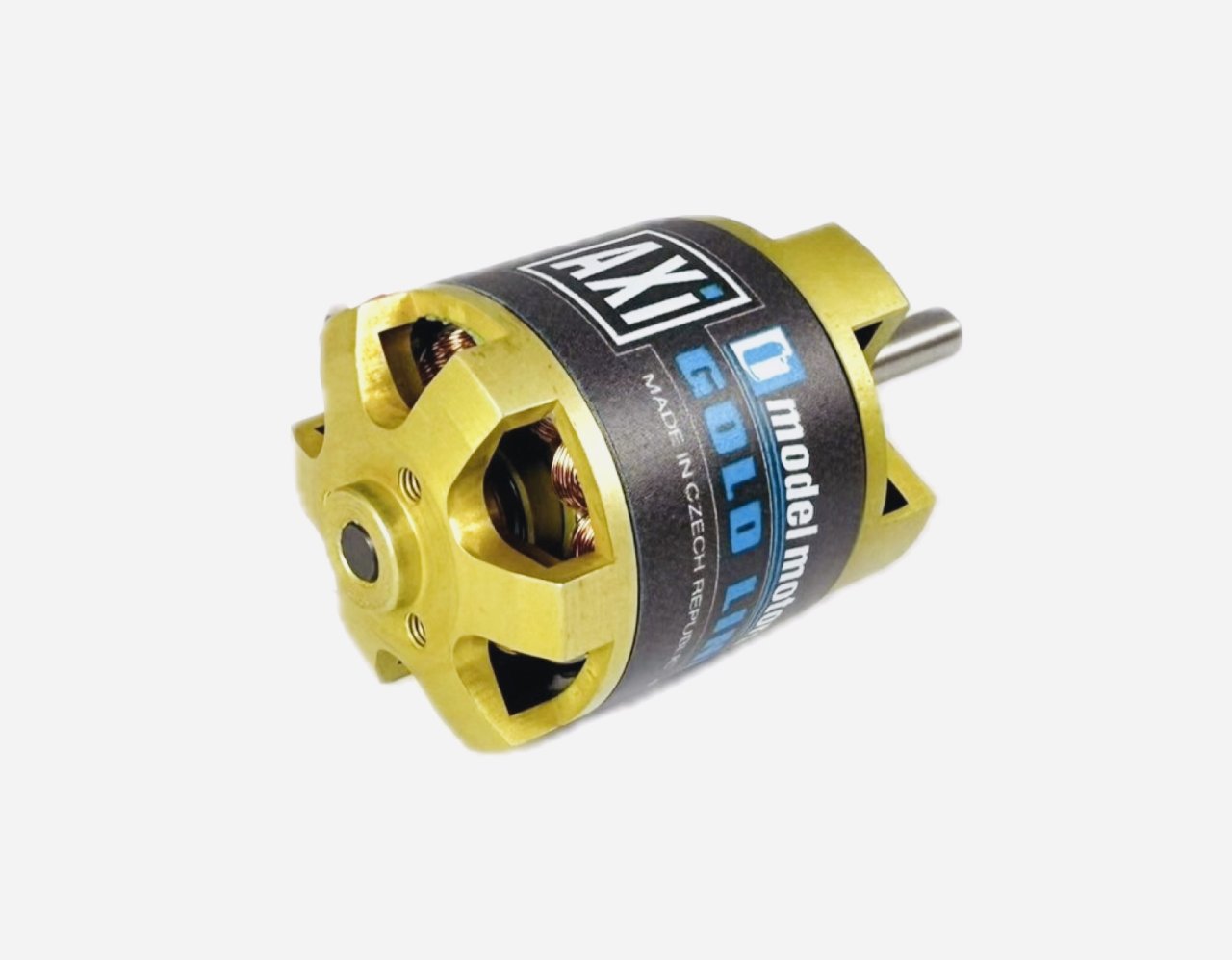

Hardened steel shaft is supported by three ball bearings. A new feature in the AXI design is a provision for radial mounting (see picture). Delivered as standard radial mount set includes: mounting flange, propeller adaptor, securing collar, and screws.

Best Practices

2 600 91,7 3s 37A/60s 40A 12"x5"
2 000 70,5 2s 37A/60s 40A 13"x8"
2 000 70,5 3s 37A/60s 40A 12"x6"
1 500 52,9 3s 37A/60s 40A 13"x4"
2 400 84,7 3s 37A/60s 40A 12"x6,5"
5 ccm / .32 - 2stroke .40 - 4stroke
