AXI 2204/54 GOLD LINE V2

  • New
AXI 2204/54 GOLD LINE V2

Technical specification

RPM/V 1400 RMP/V
Max. efficiency 78%
Max. efficiency current 2 - 6 A (>67%)
No load current 0,35 A
Current capacity 8,5 A/30 s
Internal Resistance 320 mohm
Dimensions (∅ x L) 27,5x23 mm
Shaft diameter 3,17 mm
Weight 27,4 g
No. of cells 2 - 3 Li-Poly
Max. Power 80 W
  • Product code
  • 220454V2
  • Availability
  • In stock more than 5 Pc
  • Price
  • 52.00 EUR
  • Price (excl. VAT)
  • 42.82 EUR
Pc

Product description

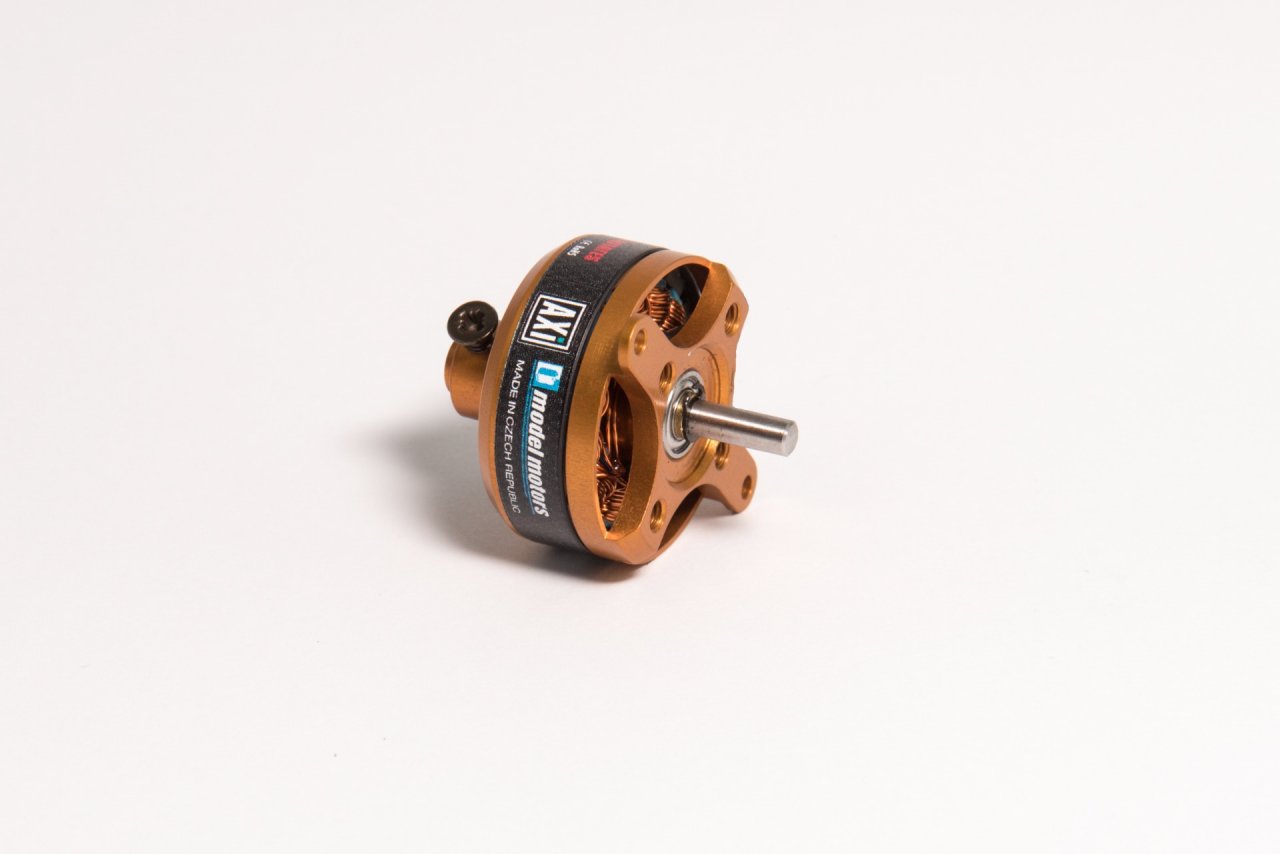

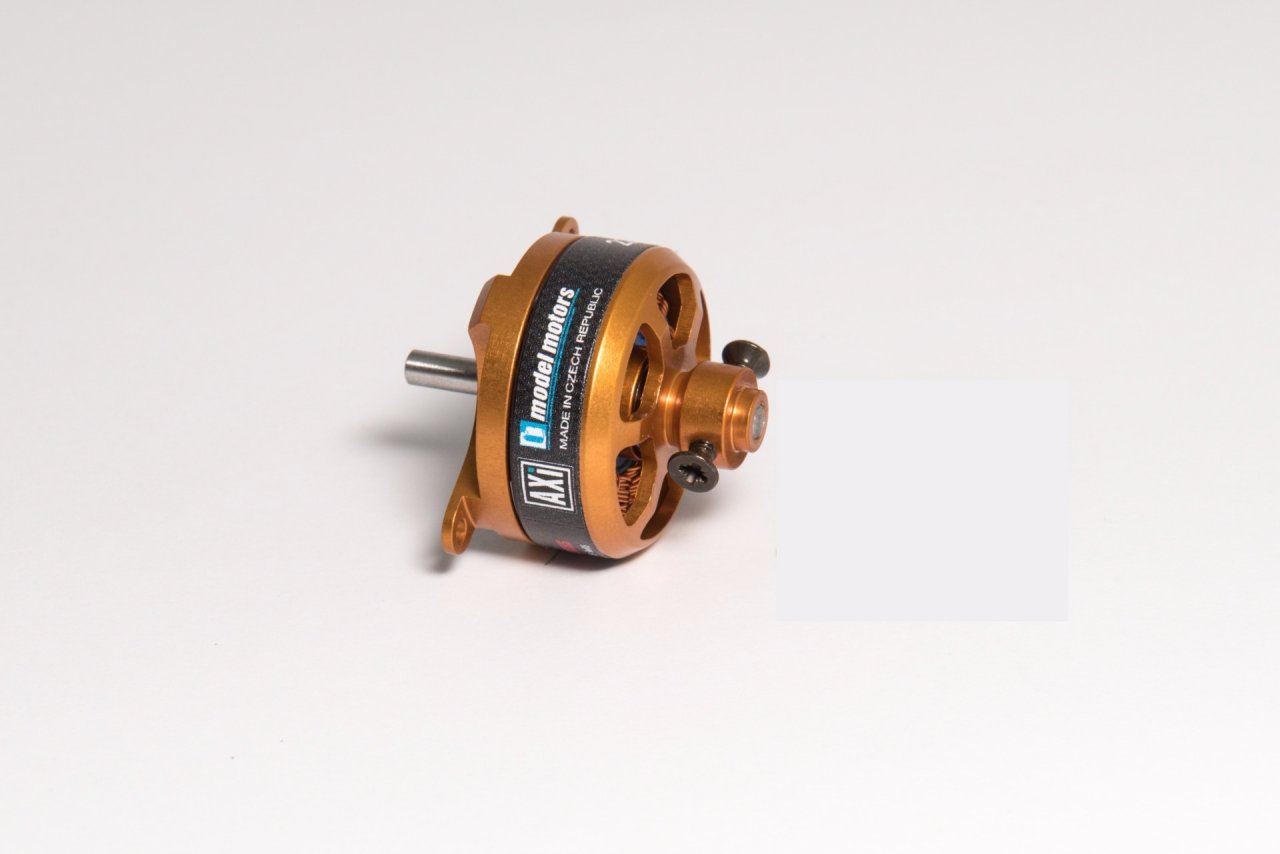

This improved and more powerful brushless motor with neodymium magnets and a rotating case was designed especially for the fast growing area of indoor aerobatic models. The AXI2204/54 GOLD LINE V2 is very light (under 28g including prop saver and cables) and offers different mounting options.

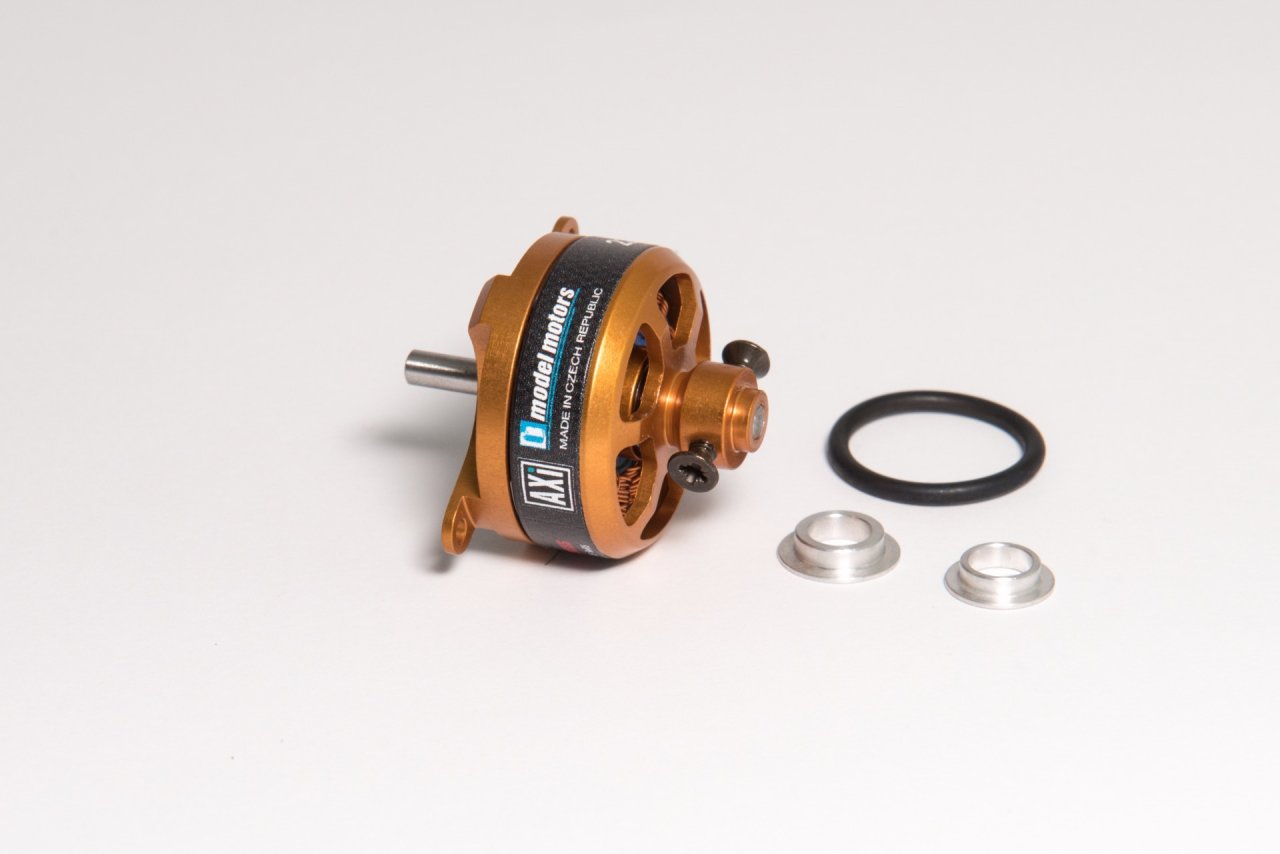

The integral prop saver makes the fitting of propellers very easy, and is safe for both the model and the propeller if they are involved in a hard landing which can happen indoors. Although the construction of the motor is very light, the motor is still robust, and the hardened steel shaft is supported by two ball bearings. This motor is suitable for indoor or outdoor aerobatic models weighing up to 280g.

Best Practices

300 10,6 3s 7,5A/30s 8A 7,5"x3,5"
260 9,2 3s 7,5A/30s 8A 8"x4"
170 6,0 2s 8A/30s 8A 9"x5"
220 7,8 2s 8A/30s 8A 9x3,8
