DOUBLE AXI 5330/20 GOLD LINE

DOUBLE AXI 5330/20 GOLD LINE

Technical specification

No. of cells 10s Li-Poly
RPM/V 235 RMP/V
Max. efficiency 91%
Max. efficiency current 23 - 57 A (>85%)
No load current 1,8 - 3 A
Current capacity 75 A/20 s
Internal Resistance 2x45 mohm
Dimensions (∅ x L) 63x159 mm
Shaft diameter 8 mm/32 mm
Weight 1550 g
  • Product code
  • 533220
  • Availability
  • In stock more than 5 Pc
  • Price
  • 482.00 EUR
  • Price (excl. VAT)
  • 397.87 EUR
Pc

Product description

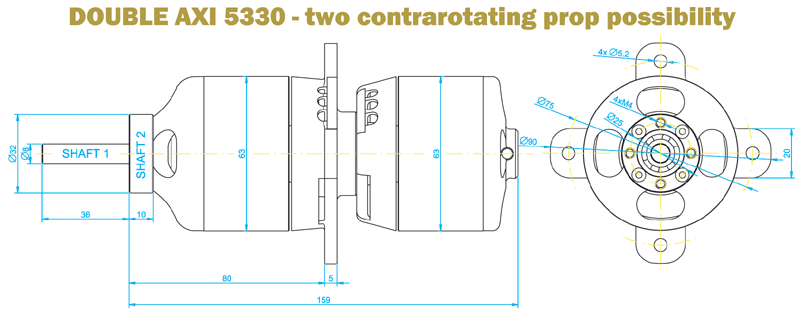

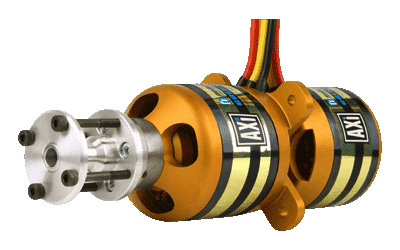

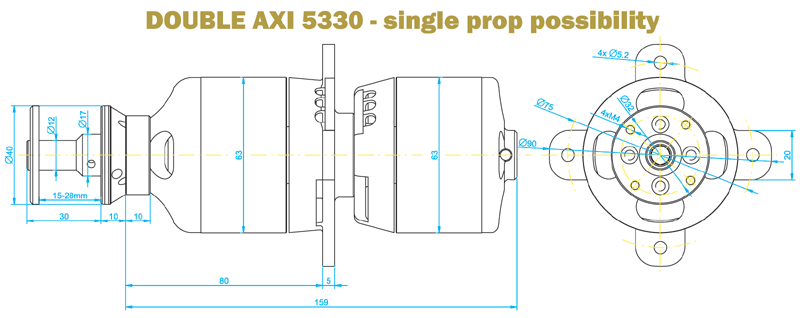

Special power unit based on two AXI 5330 motors was custom designed for aerobatic models of planes up to 16000g. Maximum burst power of this unit reach 6000Watts. DOUBLE AXI 5330/20 GOLD LINE is suitable for use with single propeller but is also ready for two contra rotating props.

Best Practices

12 000 423,3 10s 75A/20s 2x90A 26x10
16 000 564,4 10s 75A/20s 2x90A 24"x12"
80 - 100 ccm / 4.9-6.1 gasoline
