|No. of cells||max. 10s Li-Poly|
|Max. efficiency current||15 - 38 A (>85%)|
|No load current||1.5 A|
|Current capacity||58 A/60 s|
|Internal Resistance||57 mohm|
|Dimensions (∅ x L)||63x64 mm|
|Shaft diameter||8 mm|

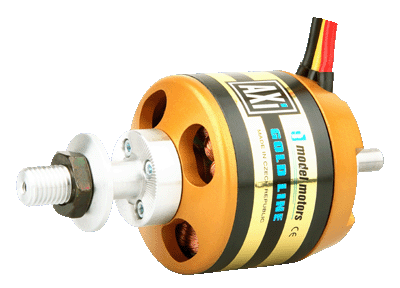

These very efficient brushless motors with neodymium magnets and a rotating case are manufactured using the latest technology from the finest quality materials. The hardened steel 8mm shaft is supported by three ball bearings, and the overall robust construction ensures a long service life. Due to it’s high torque characteristics this motor is capable of turning large propellers with a high level of efficiency, and without the need for a gearbox. These motors are suitable for large sailplanes weighing up to 10000g and sports aerobatic models up to 7000g. The lack of gearbox noise makes these motors particularly suitable for scale models.
AXI53xx motors offer front and reverse (radial) mounting options, and two prop adapters for both mounting options are included as standard.
|25 -30 ccm/1.5-1,8 -2stroke 35 - 45 ccm/2.1-2.7 gasoline|
